Echelle spectrometer is based on a 79 lines/mm grating that works between orders 26 and 57 covering 3950-8800 Å spectral range without gaps* between the orders. Cross-disperser is a custom-made N-SF8 prism. Typical spectral resolution is R=15000.

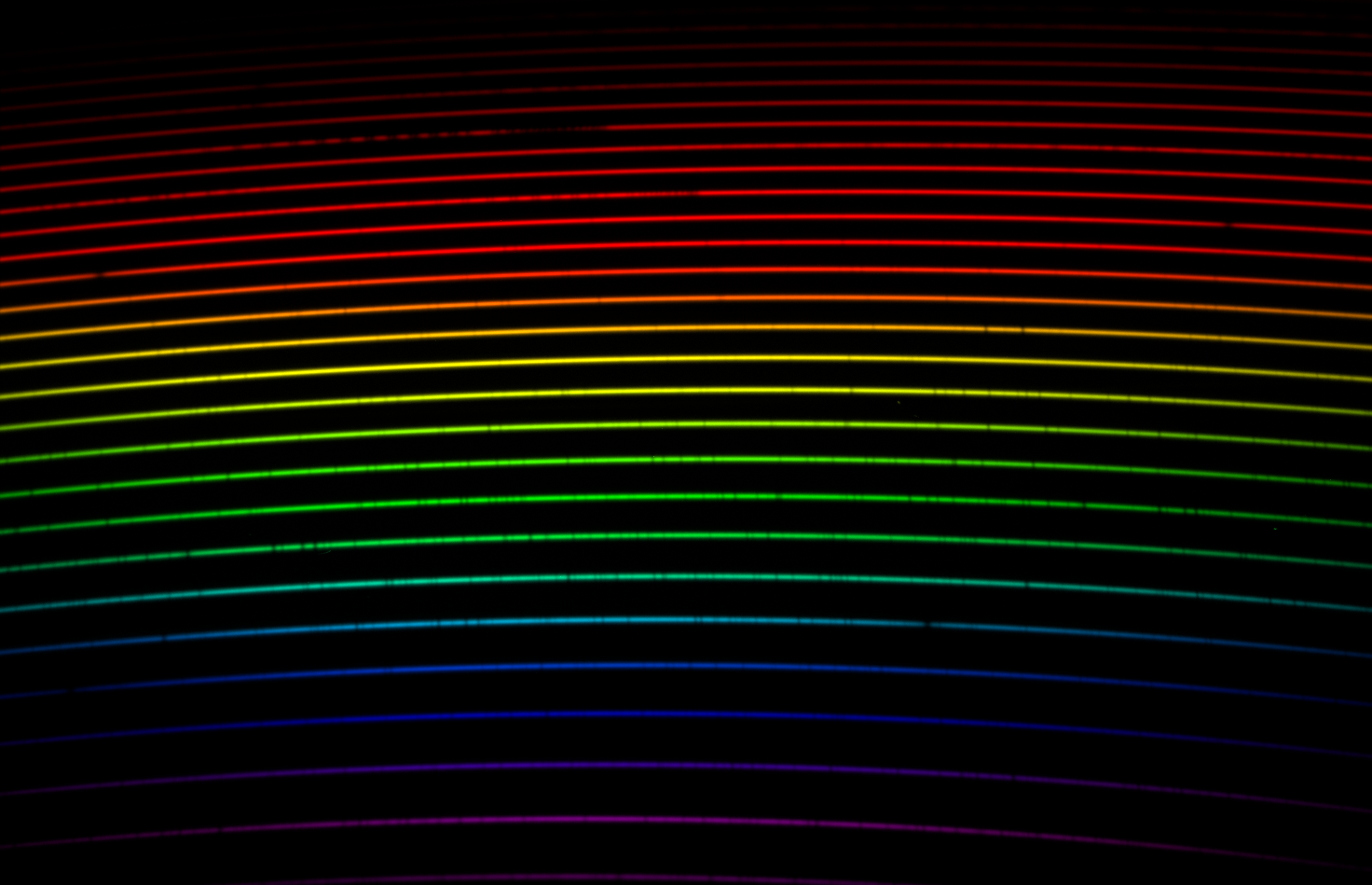

False colors echellogram recorded with a SBIG ST-10 CCD camera.
* with the popular KAF8300 CCD chip (18x13.5mm).
Echelle order | Central WL [Å] |
Dispersion [Å / pix]* |
Order range [Å]* |
Left size [Å]* |
Right size [Å]* |
26 | 8608.6 | 0.20 | 507.2 | 8354.9 | 8862.2 |
27 | 8289.7 | 0.20 | 488.5 | 8045.5 | 8533.9 |
28 | 7993.7 | 0.19 | 471.0 | 7758.2 | 8229.2 |
29 | 7718.0 | 0.18 | 454.8 | 7490.6 | 7945.4 |
30 | 7460.7 | 0.18 | 439.6 | 7240.9 | 7680.6 |
31 | 7220.1 | 0.17 | 425.4 | 7007.4 | 7432.8 |
32 | 6994.4 | 0.16 | 412.1 | 6788.4 | 7200.5 |
33 | 6782.5 | 0.16 | 399.6 | 6582.7 | 6982.3 |
34 | 6583.0 | 0.15 | 387.9 | 6389.1 | 6777.0 |
35 | 6394.9 | 0.15 | 376.8 | 6206.5 | 6583.3 |
36 | 6217.3 | 0.15 | 366.3 | 6034.1 | 6400.5 |
37 | 6049.3 | 0.14 | 356.4 | 5871.0 | 6227.5 |
38 | 5890.1 | 0.14 | 347.1 | 5716.5 | 6063.6 |
39 | 5739.0 | 0.14 | 338.2 | 5570.0 | 5908.1 |
40 | 5595.6 | 0.13 | 329.7 | 5430.7 | 5760.4 |
41 | 5459.1 | 0.13 | 321.7 | 5298.2 | 5619.9 |
42 | 5329.1 | 0.13 | 314.0 | 5172.1 | 5486.1 |
43 | 5205.2 | 0.12 | 306.7 | 5051.8 | 5358.5 |
44 | 5086.9 | 0.12 | 299.7 | 4937.0 | 5236.7 |
45 | 4973.8 | 0.12 | 293.1 | 4827.3 | 5120.4 |
46 | 4865.7 | 0.11 | 286.7 | 4722.4 | 5009.1 |
47 | 4762.2 | 0.11 | 280.6 | 4621.9 | 4902.5 |
48 | 4663.0 | 0.11 | 274.8 | 4525.6 | 4800.3 |
49 | 4567.8 | 0.11 | 269.1 | 4433.2 | 4702.4 |
50 | 4476.4 | 0.11 | 263.8 | 4344.6 | 4608.3 |
51 | 4388.7 | 0.10 | 258.6 | 4259.4 | 4518.0 |
52 | 4304.3 | 0.10 | 253.6 | 4177.5 | 4431.1 |
53 | 4223.1 | 0.10 | 248.8 | 4098.6 | 4347.5 |
54 | 4144.9 | 0.10 | 244.2 | 4022.7 | 4267.0 |
55 | 4069.5 | 0.10 | 239.8 | 3949.6 | 4189.4 |
56 | 3996.8 | 0.09 | 235.5 | 3879.1 | 4114.6 |
57 | 3926.7 | 0.09 | 231.4 | 3811.0 | 4042.4 |
* with the popular KAF8300 CCD chip (18x13.5mm).

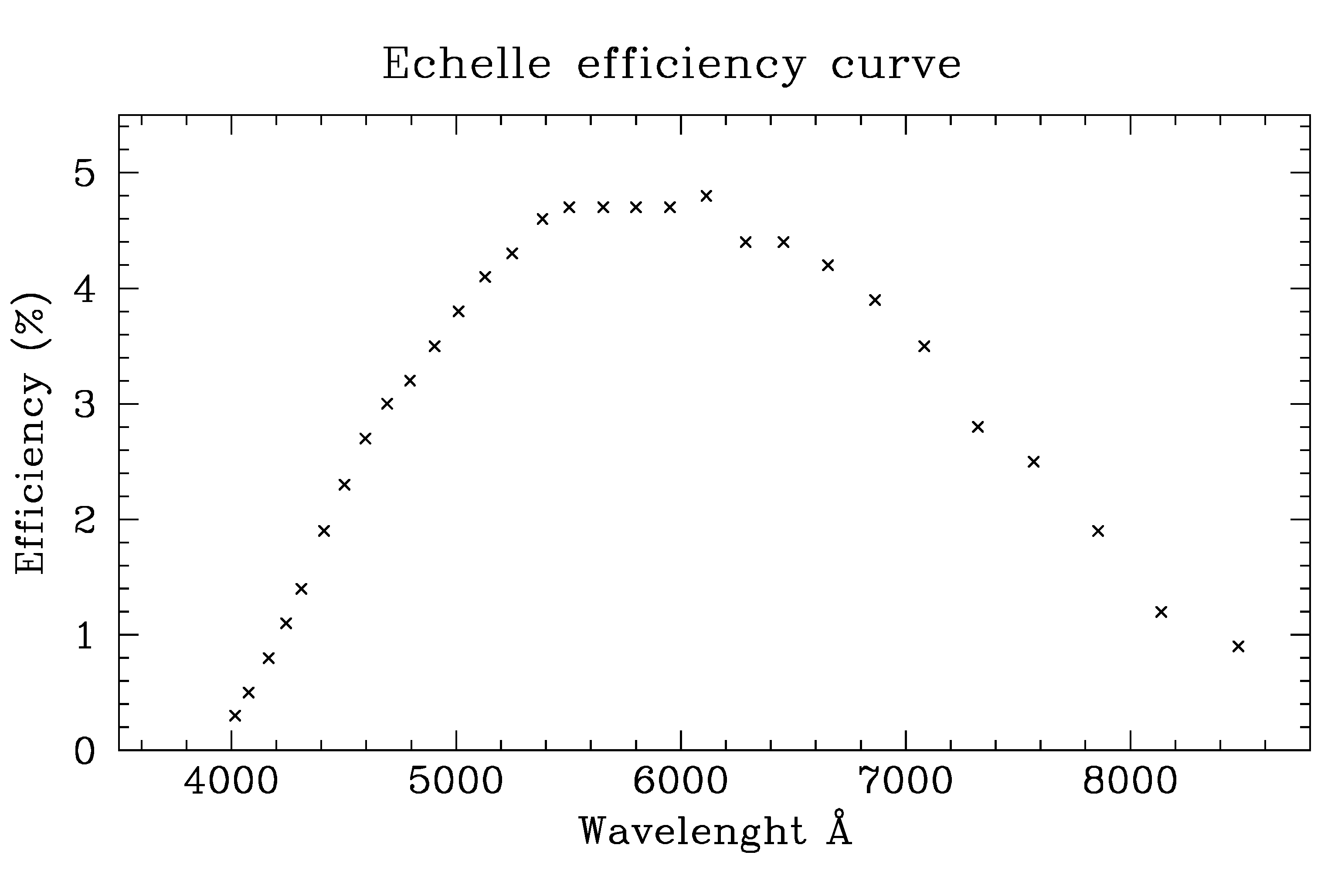

The measured efficiency reaches nearly 5% maximum at 6000 Å.
Efficiency curve measured on Vega spectrum.

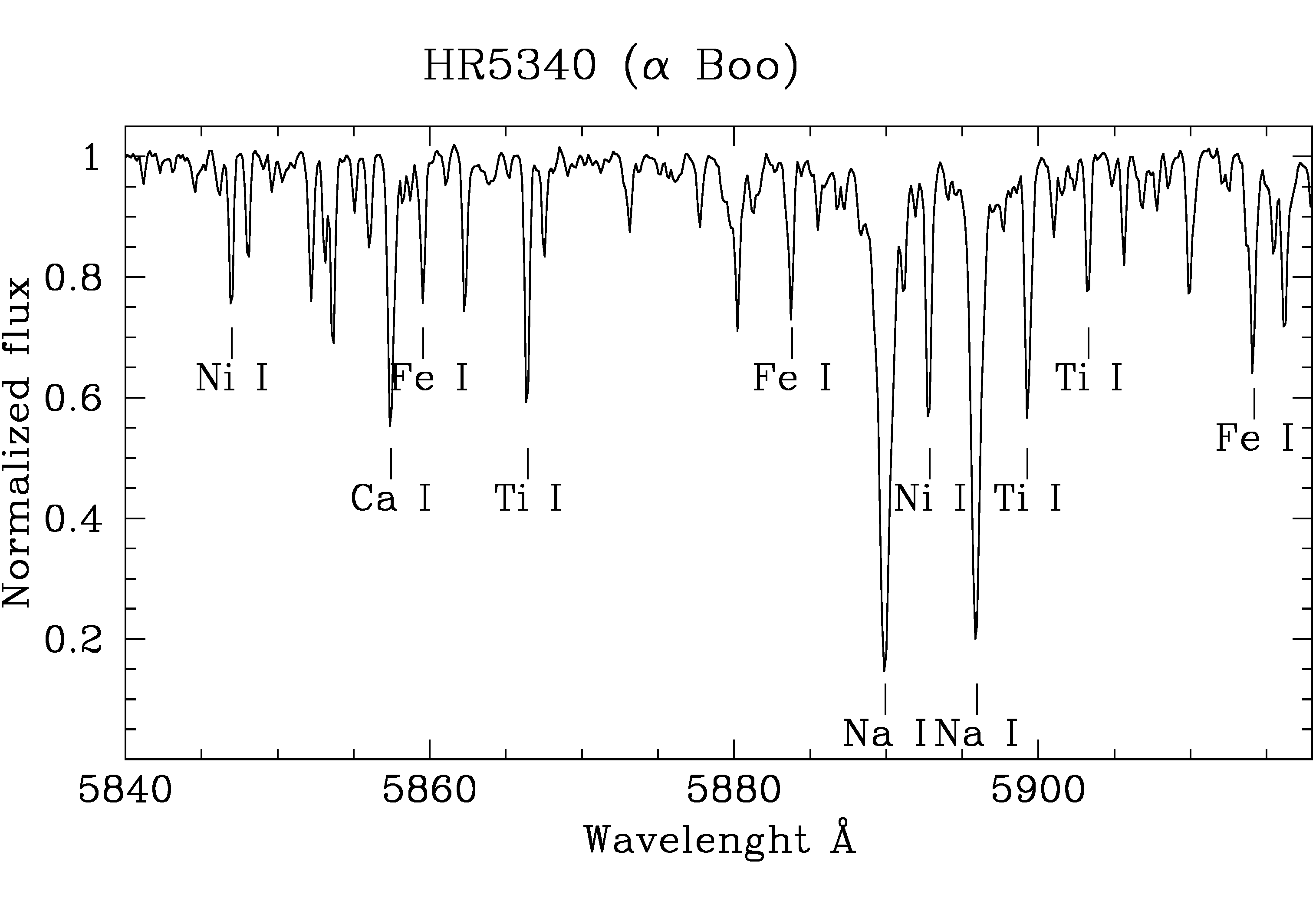

Part of an echelle spectrum of HR5340 (Arcturus, α Boo) with some absorption lines highlighted.
